AudioFlinger

概述

    AudioFlinger向下访问AudioHardware，实现输出音频数据，控制音频参数。同时，
AudioFlinger向上通过IAudioFinger接口提供服务。所以，AudioFlinger在Android的
音频系统框架中起着承上启下的作用，地位相当重要。

功能描述

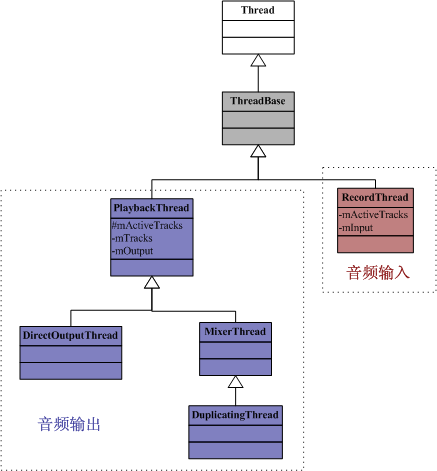

• AudioFlinger包含以下内部类：
  • IAudioFlinger接口：这是AudioFlinger向外提供服务的接口，例如openOutput，openInput，createTrack，openRecord等等，应用程序或者其他service通过ServiceManager可以获得该接口。该接口通过继承BnAudioFlinger得到。
• ThreadBase：在AudioFlinger中，Android为每一个放音/录音设备均创建一个处理线程，负责音频数据的I/O和合成，ThreadBase是这些线程的基类，所有的播放和录音线程都派生自ThreadBase。
  • PlaybackThread：音频输出线程。它有一个mOutput变量，类型为AudioStreamOutput*，因此它与HAL层的音频输出相关联。
    • MixerThread：混音线程，它将来自多个源的音频数据混音后再输出。
    • DirectOutputThread：多路输出线程，它从MixerThread派生，意味着它也能够混音。它最终会把混音后的数据写到多个输出中，也就是一份数据会有多个接收者。这就是Duplicate的含义。
    • PlaybackThread维护两个Track数组，一个是mActiveTracks，表示当前活跃的Track。另一个是mTracks，表示所有Track。
  • RecordThread：音频采集线程。它有一个mInput变量，类型为AudioStreamInput*，因此它与HAL层的音频采集相关联。

• 旧的pic/audio_flinger.jpg

AudioFlinger初始化

• 初始化最主要的功能是创建HAL层的模块对象，并初始化默认音频设置。
• 关注该构造方法是为了明确如何访问HAL层的接口。

AudioFlinger::AudioFlinger

AudioFlinger::AudioFlinger() : BnAudioFlinger(),
        mAudioHardware(0), mMasterVolume(1.0f), mMasterMute(false), mNextUniqueId(1)
{
    // 获取hardware模块对象
    mHardwareStatus = AUDIO_HW_IDLE;
    mAudioHardware = AudioHardwareInterface::create();
    mHardwareStatus = AUDIO_HW_INIT;

    if (mAudioHardware->initCheck() == NO_ERROR) {
        // open 16-bit output stream for s/w mixer
        mMode = AudioSystem::MODE_NORMAL;
        setMode(mMode);

        setMasterVolume(1.0f);
        setMasterMute(false);
    } else {
    }
}

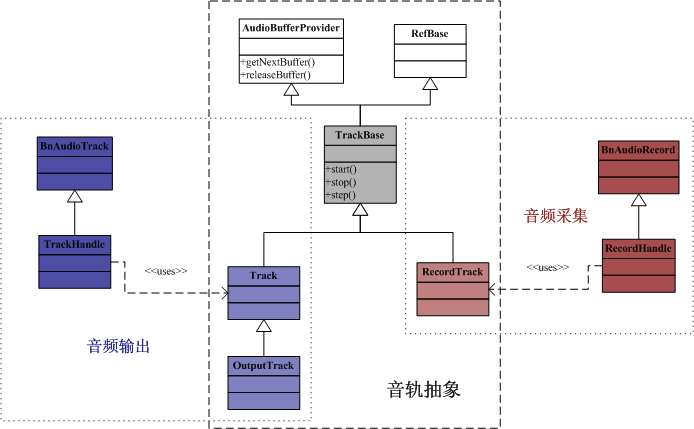

音轨抽象类和共享内存

• 在现实世界，每一种音色的声音可以定义为一个音轨，而Android的世界，同样有对应的抽象类。
• TrackBase：应用程序每创建一个音轨（AudioTrack / AudioRecord），在AudioFlinger中都会创建一个对应的Track实例，TrackBase就是这些Track的基类，它的主要任务是分配共享内存空间。其派生类有：
  • PlaybackTread::Track：用于普通播放，对应于应用层的AudioTrack。
  • PlaybackThread::OutputTrack：用于多重设备输出，当蓝牙播放开启时使用。
  • RecordThread::RecordTrack：用于录音，对应于应用层的AudioRecord。

AudioFlinger::ThreadBase::TrackBase::TrackBase

AudioFlinger::ThreadBase::TrackBase::TrackBase(
            ......
            int sessionId) : RefBase(), ......
{
    ......
    if (client != NULL) {
        mCblkMemory = client->heap()->allocate(size);
        if (mCblkMemory != 0) {
            mCblk = static_cast<audio_track_cblk_t *>(mCblkMemory->pointer());
            if (mCblk) {
                // C++的new操作符的替换，在特定的mCblk对象上分配内存
                new(mCblk) audio_track_cblk_t();
                ......
            }
        } else {
            return;
        }
    } else {
        mCblk = (audio_track_cblk_t *)(new uint8_t[size]);
        if (mCblk) {
            // C++的new操作符的替换，在特定的mCblk对象上分配内存
            new(mCblk) audio_track_cblk_t();
            ......
        }
    }
}

AudioFlinger::PlaybackThread::Track::Track

AudioFlinger::PlaybackThread::Track::Track(
            ......
            int sessionId) : TrackBase(thread, ......)
{
    if (mCblk != NULL) {
        sp<ThreadBase> baseThread = thread.promote();
        if (baseThread != 0) {
            PlaybackThread *playbackThread = (PlaybackThread *)baseThread.get();
            mName = playbackThread->getTrackName_l();
            mMainBuffer = playbackThread->mixBuffer();
        }
        if (mName < 0) {
        }
        mVolume[0] = 1.0f;
        mVolume[1] = 1.0f;
        mStreamType = streamType;
        mCblk->frameSize = audio_is_linear_pcm(format) ? mChannelCount * sizeof(int16_t) : sizeof(uint8_t);
    }
}

AudioFlinger::RecordThread::RecordTrack::RecordTrack

AudioFlinger::RecordThread::RecordTrack::RecordTrack(
            ......
            int sessionId) : TrackBase(thread, ......),
{
    if (mCblk != NULL) {
       if (format == AUDIO_FORMAT_PCM_16_BIT) {
           mCblk->frameSize = mChannelCount * sizeof(int16_t);
       } else if (format == AUDIO_FORMAT_PCM_8_BIT) {
           mCblk->frameSize = mChannelCount * sizeof(int8_t);
       } else {
           mCblk->frameSize = sizeof(int8_t);
       }
    }
}

音频输出流程

创建硬件抽象层的I/O对象

• 要与硬件设备通信，需要涉及到I/O的操作，而在Framework中，该I/O操作被抽象成audio_io_handle_t。
• 在AudioTrack一节，我们分析了AudioTrack::set方法初始化时会调用AudioSystem::getOutput方法获取一个output句柄标识。
• AudioSystem又会进一步通过IAudioPolicyService接口得到真正的io句柄。

AudioSystem::getOutput

audio_io_handle_t AudioSystem::getOutput(audio_stream_type_t stream, uint32_t samplingRate,
                                    uint32_t format, uint32_t channels,
                                    audio_policy_output_flags_t flags)
{
    audio_io_handle_t output = 0;
    if ((flags & AUDIO_POLICY_OUTPUT_FLAG_DIRECT) == 0 &&
        ((stream != AUDIO_STREAM_VOICE_CALL && stream != AUDIO_STREAM_BLUETOOTH_SCO) ||
         channels != AUDIO_CHANNEL_OUT_MONO ||
         (samplingRate != 8000 && samplingRate != 16000))) {
        Mutex::Autolock _l(gLock);
        // 如果有符合条件的io句柄，则在容器中查找
        output = AudioSystem::gStreamOutputMap.valueFor(stream);
    }
    if (output == 0) {
        const sp<IAudioPolicyService>& aps = AudioSystem::get_audio_policy_service();
        if (aps == 0) return 0;
        // 否则，调用IAudioPolicyService接口，创建一个新的audio_io_handle_t
        output = aps->getOutput(stream, samplingRate, format, channels, flags);
        if ((flags & AUDIO_POLICY_OUTPUT_FLAG_DIRECT) == 0) {
            Mutex::Autolock _l(gLock);
            // 加入到容器中，以便下次快速获取
            AudioSystem::gStreamOutputMap.add(stream, output);
        }
    }
    return output;
}

AudioPolicyService::getOutput

audio_io_handle_t AudioPolicyService::getOutput(AudioSystem::stream_type stream,
                                    uint32_t samplingRate, uint32_t format,
                                    uint32_t channels, AudioSystem::output_flags flags)
{
    if (mpPolicyManager == NULL) {
        return 0;
    }
    Mutex::Autolock _l(mLock);
    return mpPolicyManager->getOutput(stream, samplingRate, format, channels, flags);
}

播放线程初始化

• 首先通过硬件抽象层获取AudioStreamOut对象，之后创建DirectOutputThread或MixerThread对象。
• 创建好的线程会把该线程和它的ID保存在AudioFlinger的成员变量mPlaybackThreads中，mPlaybackThreads是一个Vector，AudioFlinger创建的线程都会保存在里面。最后，openOutput返回该线程的ID这个ID也就是所谓的audio_io_handle_t。这样，AudioFlinger的调用者（如AudioTrack）就能看到这个ID，当需要访问时传入该ID，AudioFlinger会通过mPlaybackThreads，得到该线程的指针。

AudioFlinger::openOutput

int AudioFlinger::openOutput(uint32_t *pDevices, uint32_t *pSamplingRate,
                                uint32_t *pFormat, uint32_t *pChannels,
                                uint32_t *pLatencyMs, uint32_t flags)
{
    ......
    Mutex::Autolock _l(mLock);
    AudioStreamOut *output = mAudioHardware->openOutputStream(*pDevices,
                                                             (int *)&format,
                                                             &channels,
                                                             &samplingRate,
                                                             &status);
    ......
    if (output != 0) {
        int id = nextUniqueId();
        if ((flags & AudioSystem::OUTPUT_FLAG_DIRECT) ||
            (format != AudioSystem::PCM_16_BIT) ||
            (channels != AudioSystem::CHANNEL_OUT_STEREO)) {
            // 创建DirectOutputThread
            thread = new DirectOutputThread(this, output, id, *pDevices);
        } else {
            // 创建MixerThread
            thread = new MixerThread(this, output, id, *pDevices);
        }
        // 加入线程ID
        mPlaybackThreads.add(id, thread);

        // 通知上层i/o配置发生变化
        thread->audioConfigChanged_l(AudioSystem::OUTPUT_OPENED);
        return id;
    }

    return 0;
}

通过TrackHandle播放

• 创建Track对象：回忆AudioTrack一节，上层应用首先要通过IAudioFlinger接口，调用createTrack()，createTrack会调用PlaybackThread类的createTrack_l方法。
  • checkPlaybackThread_l：根据线程句柄标识，在线程的容器中找到对应的PlaybackThread线程。该线程句柄标识由调用者AudioTrack传入。
  • createTrack_l：创建了PlaybackThread::Track对象，然后加入播放线程的track列表mTracks中。

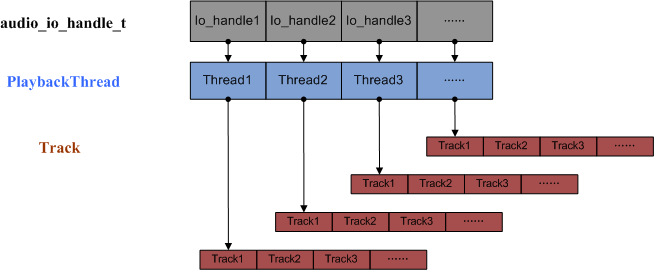

• createTrack最后创建了TrackHandle类并返回。有了io句柄，就有了播放线程，播放线程又创建了不同的Track，TrackHandle的作用就是封装这些Track，并继承实现IAudioTrack接口，提供跨进程的访问。之后，createTrack的调用者可以通过IAudioTrack接口与AudioFlinger中对应的Track实例交互。
• 播放线程实际上是MixerThread或DirectOutputThread的一个实例，该实例的threadLoop()会把该线程中的各个Track进行混合，必要时还要进行ReSample(重采样)的动作，转换为统一的采样率(44.1K)，然后通过音频系统的AudioHardware层输出音频数据。

AudioFlinger::createTrack

sp<IAudioTrack> AudioFlinger::createTrack(
        ......
        status_t *status)
{
    sp<PlaybackThread::Track> track;
    sp<TrackHandle> trackHandle;
    sp<Client> client;
    wp<Client> wclient;

    if (streamType >= AUDIO_STREAM_CNT) {
        lStatus = BAD_VALUE;
        goto Exit;
    }

    Mutex::Autolock _l(mLock);
    // 查找音频输出的工作线程
    PlaybackThread *thread = checkPlaybackThread_l(output);
    PlaybackThread *effectThread = NULL;
    if (thread == NULL) {
        LOGE("unknown output thread");
        lStatus = BAD_VALUE;
        goto Exit;
    }

    sp<PlaybackThread::Track> track;
    sp<TrackHandle> trackHandle;
    ......
    {
        track = thread->createTrack_l(client, streamType, sampleRate, format,
                channelCount, frameCount, sharedBuffer, lSessionId, &lStatus);

        // move effect chain to this output thread if an effect on same session was waiting
        // for a track to be created
        if (lStatus == NO_ERROR && effectThread != NULL) {
            Mutex::Autolock _dl(thread->mLock);
            Mutex::Autolock _sl(effectThread->mLock);
            moveEffectChain_l(lSessionId, effectThread, thread, true);
        }
    }

    if (lStatus == NO_ERROR) {
        // 创建TrackHandle
        trackHandle = new TrackHandle(track);
    } else {
        ......
    }

Exit:
    ......
    return trackHandle;
}

AudioFlinger::checkPlaybackThread_l

AudioFlinger::PlaybackThread *AudioFlinger::checkPlaybackThread_l(int output) const
{
    PlaybackThread *thread = NULL;
    if (mPlaybackThreads.indexOfKey(output) >= 0) {
        thread = (PlaybackThread *)mPlaybackThreads.valueFor(output).get();
    }
    return thread;
}

AudioFlinger::PlaybackThread::createTrack_l

sp<AudioFlinger::PlaybackThread::Track>  AudioFlinger::PlaybackThread::createTrack_l(
        ......
        status_t *status)
{
    sp<Track> track;
    status_t lStatus;

    ......
    {
        Mutex::Autolock _l(mLock);
        ......
        // 创建Track
        track = new Track(this, client, streamType, sampleRate, format,
                channelCount, frameCount, sharedBuffer, sessionId);
        if (track->getCblk() == NULL || track->name() < 0) {
            lStatus = NO_MEMORY;
            goto Exit;
        }
        // 将新创建的Track加入内部数组
        mTracks.add(track);

        sp<EffectChain> chain = getEffectChain_l(sessionId);
        if (chain != 0) {
            track->setMainBuffer(chain->inBuffer());
            chain->setStrategy(AudioSystem::getStrategyForStream((AudioSystem::stream_type)track->type()));
        }
    }
    lStatus = NO_ERROR;

Exit:
    ......
    return track;
}

播放线程堆栈图

• 旧的pic/playthread.png

音频采集流程

• 录音的流程和放音差不多，只不过数据流动的方向相反，录音线程变成RecordThread，Track变成了RecordTrack，openRecord返回RecordHandle。

创建硬件抽象层的I/O对象

• 在AudioRecord一节中描述了AudioRecord初始化时会调用AudioSystem::getInput方法创建audio_io_handle_t句柄，而该方法又会进一步通过IAudioPolicyService接口来获取真正的io句柄。

AudioSystem::getInput

audio_io_handle_t AudioSystem::getInput(int inputSource,
                                    uint32_t samplingRate,
                                    uint32_t format,
                                    uint32_t channels,
                                    audio_in_acoustics_t acoustics,
                                    int sessionId)
{
    const sp<IAudioPolicyService>& aps = AudioSystem::get_audio_policy_service();
    if (aps == 0) return 0;
    return aps->getInput(inputSource, samplingRate, format, channels, acoustics, sessionId);
}

AudioPolicyService::getInput

audio_io_handle_t AudioPolicyService::getInput(int inputSource,
                                    uint32_t samplingRate, uint32_t format,
                                    uint32_t channels, AudioSystem::audio_in_acoustics acoustics)
{
    if (mpPolicyManager == NULL) {
        return 0;
    }
    Mutex::Autolock _l(mLock);
    return mpPolicyManager->getInput(inputSource, samplingRate, format, channels, acoustics);
}

录音线程初始化

• AudioFlinger::openInput首先创建AudioStreamIn对象，之后创建RecordThread线程并加入到线程队列中。

AudioFlinger::openInput

int AudioFlinger::openInput(uint32_t *pDevices, uint32_t *pSamplingRate,
                                uint32_t *pFormat, uint32_t *pChannels,
                                uint32_t acoustics)
{
    ......
    Mutex::Autolock _l(mLock);
    AudioStreamIn *input =
        mAudioHardware->openInputStream(*pDevices, (int *)&format,
                                        &channels, &samplingRate, &status,
                                        (AudioSystem::audio_in_acoustics)acoustics);

    if (input != 0) {
        int id = nextUniqueId();
        // 创建RecordThread线程
        thread = new RecordThread(this, input, reqSamplingRate, reqChannels, id);
        // 加入线程列表
        mRecordThreads.add(id, thread);
        ......
        input->standby();

        // 通知i/o设备变更
        thread->audioConfigChanged_l(AudioSystem::INPUT_OPENED);
        return id;
    }

    return 0;
}

通过RecordHandle录音

• 应用程序通过IAudioFlinger接口调用openRecord方法，该方法通过RecordThread创建RecordTrack对象，并最终初始化RecordHandle。
• RecordHandle实现了IAudioRecord接口，应用程序最终通过该接口与RecordThread交互进行录音操作。
• 录音的线程处理请查看AudioFlinger::RecordThread::threadLoop()方法。

AudioFlinger::openRecord

sp<IAudioRecord> AudioFlinger::openRecord(
        pid_t pid,
        int input,
        uint32_t sampleRate,
        uint32_t format,
        uint32_t channelMask,
        int frameCount,
        uint32_t flags,
        int *sessionId,
        status_t *status)
{
    sp<RecordThread::RecordTrack> recordTrack;
    sp<RecordHandle> recordHandle;
    RecordThread *thread;
    ......

    {
        Mutex::Autolock _l(mLock);
        // 根据io句柄获取一个线程对象
        thread = checkRecordThread_l(input);

        // 创建一个RecordTrack
        recordTrack = thread->createRecordTrack_l(client, sampleRate, format,
                                                channelMask, frameCount, flags,
                                                lSessionId, &lStatus);
    }

    // 创建一个RecordHandle对象
    recordHandle = new RecordHandle(recordTrack);

Exit:
    ......
    return recordHandle;
}

AudioFlinger::checkRecordThread_l

AudioFlinger::RecordThread *AudioFlinger::checkRecordThread_l(int input) const
{
    RecordThread *thread = NULL;
    if (mRecordThreads.indexOfKey(input) >= 0) {
        thread = (RecordThread *)mRecordThreads.valueFor(input).get();
    }
    return thread;
}

AudioFlinger::RecordThread::createRecordTrack_l

sp<AudioFlinger::RecordThread::RecordTrack> AudioFlinger::RecordThread::createRecordTrack_l(
        ......
        status_t *status)
{
    sp<RecordTrack> track;
    status_t lStatus;

    lStatus = initCheck();
    if (lStatus != NO_ERROR) {
        goto Exit;
    }

    { // scope for mLock
        Mutex::Autolock _l(mLock);

        track = new RecordTrack(this, client, sampleRate,
                      format, channelMask, frameCount, flags, sessionId);

        if (track->getCblk() == NULL) {
            lStatus = NO_MEMORY;
            goto Exit;
        }

        mTrack = track.get();
        // disable AEC and NS if the device is a BT SCO headset supporting those pre processings
        bool suspend = audio_is_bluetooth_sco_device(
                (audio_devices_t)(mDevice & AUDIO_DEVICE_IN_ALL)) && mAudioFlinger->btNrecIsOff();
        setEffectSuspended_l(FX_IID_AEC, suspend, sessionId);
        setEffectSuspended_l(FX_IID_NS, suspend, sessionId);
    }
    lStatus = NO_ERROR;

Exit:
    return track;
}
